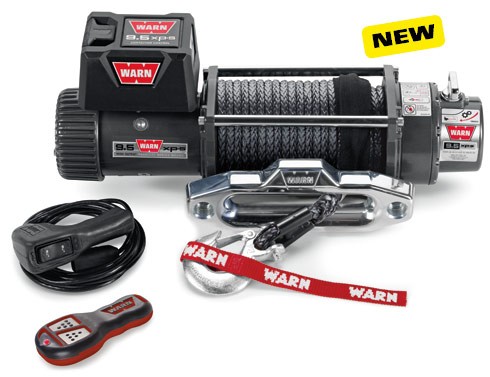

WARN 9.5XP-S Winch Synthetic Rope 12V

The Ultimate Winch Now With Synthetic Rope Designed to offer extreme performance in the harshest conditions.

  • Comes with 80 ft. of 3/8" (24.38m of 9.5mm) WARN Spydura synthetic rope, hook, remote control on 12' (3.7m) lead, hand-held wireless remote and polished aluminum hawse fairlead

  • Includes both corded and wireless winch controls

  • Extreme-duty winch sealing. Enables superior water resistance

  • 3-stage planetary geartrain for fast, smooth, reliable operation

  • Series-wound winch motor is powerful and reliable

  • Extended-duty control pack delivers long duty cycle to help you tackle the most demanding pulls

  • Exclusive brake design. Provides superior operator control when winching

  • Remote-mount control box allows for a variety of mounting configurations

  • High-gloss, chip-resistant powder-coated finish provides superior corrosion resistance

The corded WARN remote is constructed of durable EPDM rubber, and features enhanced switch sealing. This winch also comes with a hand-held wireless remote.

This is the 12V version

Buy One Online Here and NOW!


Product Description

9.5xp-s SPECS/PART NUMBERS Winch model: WARN 9.5xp-s Part number: PN 88850 Rated line pull: 9,500 lbs., (4310 kg) single-line Motor: 12V 6 hp (4.48kw), High output parallel series wound Electrical controls: Contactor Remote Control: Remote switch, 12' (3.7m) lead and Geartrain: 3-Stage Planetary Gear ratio: 156:1 Clutch (freespooling): Sliding Ring Gear Brake: Automatic Direct Drive Cone Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm) Weight: 68 lbs. (30.8 kg) Synthetic Rope: 80', 3/8" diameter (24.38m, 9.5mm diam.) Fairlead: Polished Aluminum Hawse Recommended Battery: 650 CCA minimum for winching Battery leads: 2 gauge, 72" (1.83m) Finish: High-gloss powder coat over primer undercoating 12V DC performance specs (first layer of drum) Line Pull Lbs.(Kgs.) Line Speed FT./min(M/min.) Motor Current Pull by layer layer/Lbs(Kgs.) 0 38 (11.6) 70 amps 1/9500 (4313) 2000 (910) 16.8 (5.1) 175 amps 2/8650 (4927) 4000 (1810) 12.8 (3.9) 262 amps 3/7920 (3595) 6000 (2720) 10.1 (3.1) 335 amps 4/7400 (3359) 8000 (3630) 8.8 (2.7) 425 amps 5/6940 (3150) 9500 (4310) 7.6 (2.3) 480 amps Above performance specs are based on first layer of drum Winch Dimensions: 22.7" L. x 6.3" D. x 7.7" H. (577mm L. x 160mm D. x 196mm H.) Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
