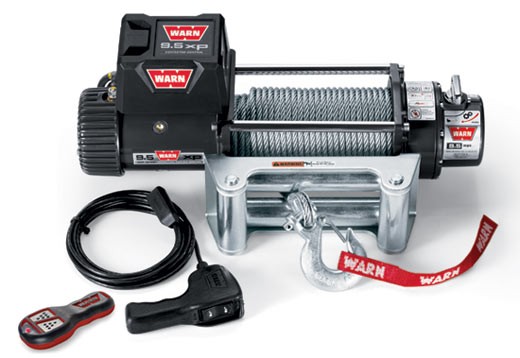

WARN 9.5XP Winch 12V

Fast, powerful and reliable - for extreme conditions The 9.5xp Extreme Performance winch is designed to offer the highest performance in the harshest conditions. From its fast line speeds and strong 4,310 kg pull rating, to its extreme-duty sealing and contactor control, the 9.5xp is the winch you want when the trail gets tough.



  • Series-wound winch motor is powerful and reliable

  • Extreme-duty winch sealing. Enables superior water resistance

  • Exclusive brake design. Provides superior operator control when winching

  • Extended-duty control pack delivers long duty cycle to help you tackle the most demanding pulls

  • 3-stage planetary geartrain for fast, smooth, reliable operation

  • Remote-mount control box allows for a variety of mounting configurations

  • Includes both corded and wireless winch controls

  • High-gloss, chip-resistant powder-coated finish provides superior corrosion resistance

  • 100' (30m) of steel


This is the 12 Volt version




Buy this online NOW!




$2,610.00

Product Description

9.5XP SPECS/PART NUMBER
Winch model: 9.5xp
Part number: 86500 (wire rope, CE)
Rated line pull: 9,500 lbs., (4310 kgs.) single-line
Motor: 12V 6 hp (4.48kw), High output parallel series wound
Electrical controls: Contactor
Remote controls: Remote switch, 12' (3.7m) lead and
Geartrain: 3-stage planetary
Gear ratio: 156:1
Clutch (freespooling): Sliding ring gear
Brake: Automatic direct drive cone
Rope: Steel - 100', 5/16" diameter (30m, 8mm diam.)
Fairlead: roller fairlead
Recommended battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: High-gloss powder coat over primer undercoating
Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight:  87 lbs. (39.5 kgs)

12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 38 (11.6) 70 amps 1/9500 (4313)
2000 (910) 16.8 (5.1) 175 amps 2/8650 (4927)
4000 (1810) 12.8 (3.9) 262 amps 3/7920 (3595)
6000 (2720) 10.1 (3.1) 335 amps 4/7400 (3359)
8000 (3630) 8.8 (2.7) 425 amps 5/6940 (3150)
9500 (4310) 7.6 (2.3) 480 amps


Above performance specs are based on first layer of drum


Winch Dimensions: 22.7" L. x 6.3" D. x 7.7" H.
(577mm L. x 160mm D. x 196mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
