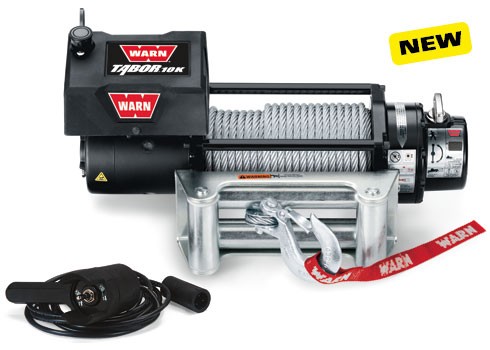

WARN Tabor 10K Winch 12V

Big on Power and Big on Value For those looking for more pulling power without having to break the bank, there's the WARN Tabor 10K. With a 10,000 lb. capacity, this winch is ideal for heavier trucks, SUVs, and Jeeps. Big power, big torque, not-so-big price.

Legendary WARN reliability and performance; 10,000 lb. (4536 kg) capacity

Low-profile design will fit most trucks and SUVs

Separate control pack for various mounting options

Exclusive brake design for superior winching control

Durable, smooth, and reliable three-stage planetary geartrain

Series-wound motor for power and fast line speed

Remote control with 12' (3.7m) lead

80' of 3/8" (24m of 9.5mm) diameter wire rope

This is the 12V version

Buy Online Now!

$1,350.00

Qty:

Product Description

TABOR 10K SPECS/PART NUMBERS Winch model: Tabor 10K Part number: PN 88395 (12V) Rated line pull: 10,000 lbs., (4536 kgs.) single-line Motor: 12V DC Series Wound Electrical controls: Solenoid Remote Control: Remote switch, 12' (3.7m) lead Geartrain: 3-Stage Planetary Gear ratio: 261:1 Clutch (freespooling): Sliding Ring Gear Brake: Automatic Direct Drive Cone Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm) Weight: 89 lbs. (40.4 kg) Wire Rope: 80', 3/8" diameter (24m, 9.5mm diam.) Fairlead: Roller Recommended Battery: 650 CCA minimum for winching Battery leads: 2 gauge, 72" (1.83m) Finish: Powder coat 12V DC performance specs (first layer of drum) Line Pull Lbs.(Kgs.) Line Speed FT./min(M/min.) Motor Current Pull by layer layer/Lbs(Kgs.) 0 25.9 (7.8) 66 amps 1/10000 (4536) 2000 (910) 13.0 (3.9) 160 amps 2/8000 (3629) 4000 (1810) 9.6 (2.9) 247 amps 3/7280 (3302) 6000 (2720) 7.1 (2.1) 332 amps 4/6670 (3026) 8000 (3630) 5.0 (1.5) 417 amps 5/6230 (2826) 10000 (4536) 2.3 (0.7) 502 amps Above performance specs are based on first layer of drum Winch Dimensions: 20.8" L. x 6.3" D. x 6.97" H. (528mm L. x 160mm D. x 177mm H.) Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
