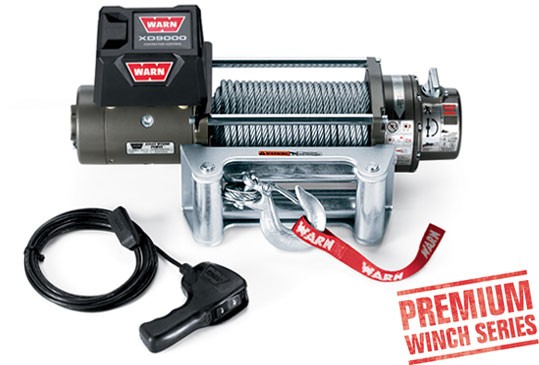

Warn XD9000 Winch 12V

WARN XD9000 Long time best selling winch Long-time best seller.


A durable 9,000 lb. winch with a compact body and separate control pack that allows you to use it in tight spaces.


Comes with 100' of 5/16" wire rope.


Backed by the Warn Limited Lifetime Warranty.


Low-profile design and separate control box allows for a wide range of mounting options


Exclusive brake design provides superior control while winching Durable 3-stage planetary geartrain for smooth, reliable, operation


Series-wound, high-speed motor provides fast line speed and strong pulls


Chip-resistant, powder-coated finish Remote control with 12' (3.7m) lead.


Durable 5/16" (8mm) diameter galvanized steel wire rope.


This is the 12 Volt version


Buy a Warn XD9000 here today!


$2,095.00

Product Description

XD9000 SPECS
Part number: 28500 (12V)
Part Number: 88500 (12V, CE, International sales only)
Part number: 265012 (24V) Contact WARN Customer Service for Availability
Winch model: XD9000
Rated line pull: 9,000 lbs., (4080 kgs.) single-line
Motor: Series Wound: 12V 4.6 hp, 24V 2.5 hp
Electrical controls: Contactor
Remote Control: Remote switch, 12' (3.7m) lead
Gear Train: 3-Stage Planetary
Gear ratio: 156:1
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic mechanical cone
Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 78 lbs. (35kgs.)
Wire rope: 100', 5/16" dia. (30m, 8mm)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: Argent gray powder coat

12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 38 (11.58) 56 amps 1/9000 (4082)
2000 (910) 15 (6.8) 161 amps 2/8190 (3715)
4000 (1810) 10.3 (3.14) 252 amps 3/7500 (3402)
6000 (2720) 7.5 (2.29) 332 amps 4/7010 (3180)
8000 (3630) 5.1 (1.55) 423 amps
9000 (4080) 3.9 (1.19) 478 amps

24V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 22.5 (6.86) 46 amps 1/9000 (4082)
2000 (910) 14.5 (4.42) 93 amps 2/8190 (3715)
4000 (1810) 11 (3.35) 131 amps 3/7500 (3402)
6000(2720) 9.1(2.77) 169 amps 4/7010(3180)
8000 (3630) 7.9 (2.41) 207 amps 5/6570 (2980)
9000 (4080) 7.4 (2.26) 226 amps

Above performance specs are based on first layer of drum


Winch Dimensions: 21.8" L. x 6.3" D. x 7.6" H.
(555mm L. x 160mm D. x 193mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
